Model No.: CWHF-
Brand: CWJX
Color: As Your Request
Customize: Accepted
Motor: Vertical Vibrating Motor
Material: Carbon Steel/ Stainless Steel 304
Layer(s): Single
Speed: 1990rpm
Exciting Force: 350-1300Kg
Usage: Food/metal/chemical/pharmaceutical Industry
Power(KW): 0.4-2kw
Model Number: CWH
Packaging: Packed in wooden cases
Productivity: variable
Transportation: Ocean,Land,Air
Place of Origin: Henan
Supply Ability: 200sets
Certificate: ISO,CE,BV
Port: Qingdao,Shanghai
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Product Description
Introduction of high frequency Vibrating Sifter
High frequency Vibrating sifter uses high-frequency electrical vibration source. The vibration frequency rise up to 3000 times per minute. When the raw materials touch the mesh, because the high-frequency vibration, it can destroy the slurry surface tension and increase the probability of contact between the material and the mesh. Also it can improve the efficiency of the material going through the mesh.
As a single layer sieve, this series products has net type structure, convenient to change the nets, good durability, good slag discharge performance,sieving utilization rate increase, and productivity increased.

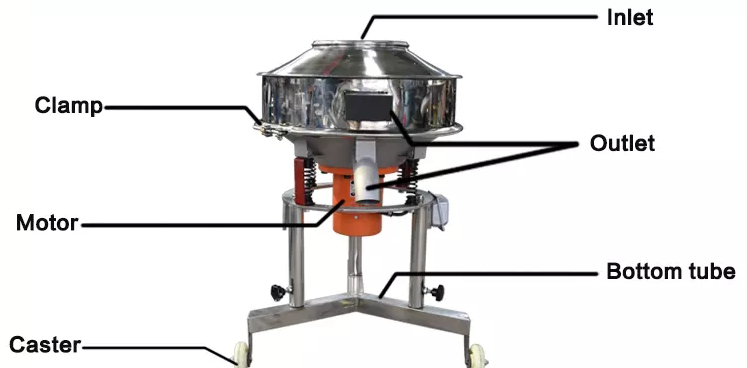

Working Princle
The high frequency vibrating sifter is a different working principle compared with ordinary screening device. Because of high frequency , it is able to destroy the tension on pulp surface, make small grain material vibrate at high speed on surface, able to accelerate to the separation of heavy organic minerals, increase the probability of material (smaller than separation degree) contact with screen hole. Thus this unique characteristic has created better separating condition that make the material (smaller than separation degree) pass the screen hole easily, especially the large proportion of grain and slurry, too.
Technical Parameter
Model
Power(w)
Effective diameter of mesh (mm)
Spedd(r/min)
CW-600
400
610
2990
CW-800
550
760
2990
CW-1000
1300 920
2990
CW-1200
1300
1130
2990
1.Small volume, light, easy to move and height freely adjusted
2.No-blocked mesh, no-powder flying, the vibration frequency is up to 3,000 times / min.
3.The special mesh structure makes installation convenient and fast only taking 3 to 5minutes, simple operation , easy cleaning even for blind space and no residue leave;
4.No mechanical movement and easy maintenance. All parts are made of stainless steel other than those electrical parts.
5.Single-layer network structure, to avoid friction between the traditional structure of the shortcomings of the screen
6.Stainless steel 304 is used extensively throughout each materials contact parts. The appearance is beautiful

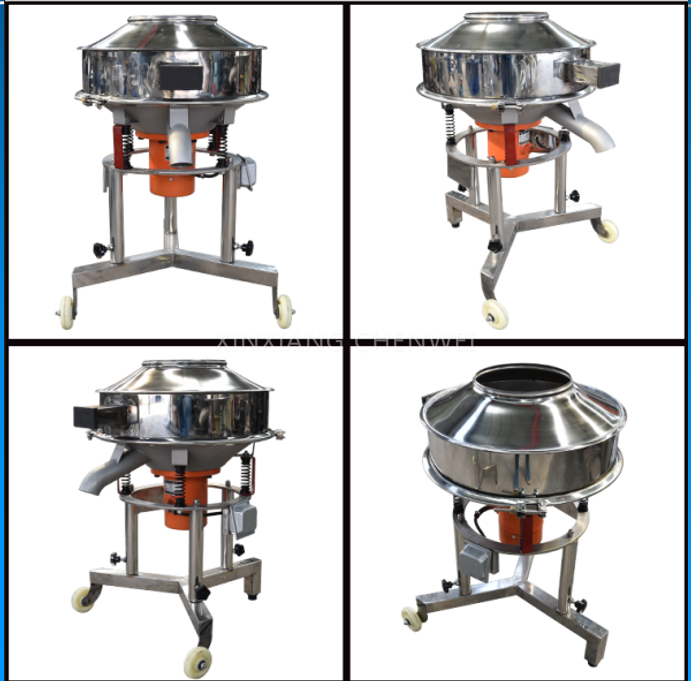

Detailed Images
Packing & Delivery
Product Categories : Sieving Machine > Vibrating Screen
